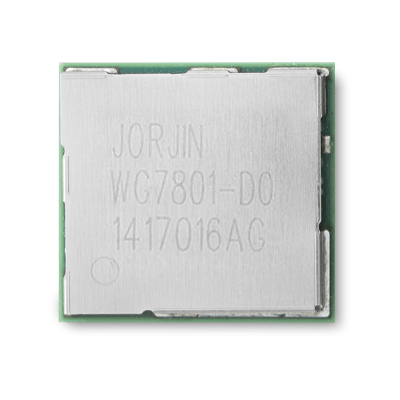

The Jorjin WG7801-D0 is a low cost 2.4GHz WLAN system in package (SiP) module based on the WL1801 SoC from Texas Instruments.  It contains a crystal, power amplifier, Tx filter as well as the necessary passive components to fully implement a 802.11b,g,n WiFi function.

The WG7801-D0 is connected to the host processor via a 1.8V SDIO interface.  Linux and Android drivers are provided for a wide range of application processors, with WinCE and Windows Mobile drivers available from our partner network.

Jorjin can supply a suitable 2.4GHz chip antenna for the WG7801-D0 and can provide complete design services including a  full design review and FCC/CE certification.

Key Features

IEEE 802.11 b/g/n

Internal crystal and bandpass filter

Based on TI Wilink8 45-nm CMOS technology

Seamless integration with TI Sitara application processors

Pin compatible with Jorjin WG7831-D0 which also supports Bluetooth

Operating temperature: -20°C ~ 75°C

Supplied on 1800 pieces tape and reel

Specification

CHIPSET

TI WL1801

WLAN

IEEE 802.11 b/g/n

Certification

CE/FCC/IC

Dimension

12.8 x 12.0 x 1.63 mm

Operating Temperature

-20°C ~ 75°C

Interface

SDIO
