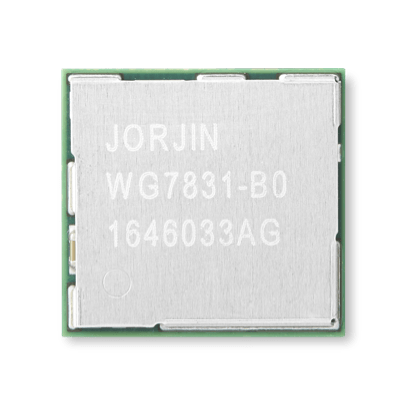

The Jorjin WG7831-B0 is a low cost 2.4GHz WLAN + Bluetooth system in package (SiP) module based on the WL1831 SoC from Texas Instruments.  It contains a power amplifier, Tx filter and Tx/Rx switch as well as the necessary passive components to fully implement the 802.11b,g,n WiFi & Bluetooth 4.1 functions.

The WG7831-B0 WLAN is connected to the host processor via a 1.8V SDIO interface, and the Bluetooth is connected via a UART.  Linux and Android drivers are provided for a wide range of application processors, with WinCE and Windows Mobile drivers available from our partner network.

Jorjin can supply a suitable 2.4GHz chip antenna for the WG7831-B0 and can provide complete design services including a  full design review and FCC/CE certification.

Key Features

IEEE 802.11b,g,n​ + BT(2.1/3.0/4.1)

External crystal oscillator / TCXO

WLAN / Bluetooth Coexistance circuitry

Based on TI Wilink8 45-nm CMOS technology

Seamless integration with TI Sitara and other application processors

Pin compatible with Jorjin WG7801-B0 and WG7871-BN

Supplied on 1800 pieces tape and reel

Specification

Chipset

TI WL1831

WLAN

IEEE 802.11 b/g/n & BT(2.1/3.0/4.1)

Certification

N/A

Dimension (mm)

12.8 mm x 12.0 mm x 1.63 mm

Operating Temperature

-40°C ~ 85°C

Interface

Shared HCI transport for BT/BLE over

UART and SDIO for WLAN
