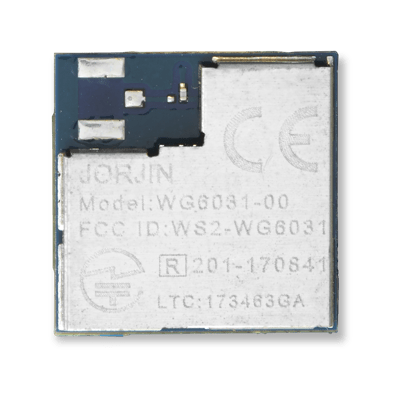

WG6031-00 is a 802.11b/g/n Wi-Fi module based on Realtek’s RTL8189. WG6031-00 supports SPI (and SDIO if needed) interface. At the same time, it is a cost-effective 1T1R Wi-Fi module targeting the Internet of Things market. WG6031-00 is as well certified by FCC, CE, and TELEC.

Key Features

LGA-20 pin package

CMOS MAC, Baseband PHY, and RF in a single chip for 802.11b/g/n compatible WLAN

Complete 802.11n solution for 2.4GHz band

72.2Mbps receive PHY rate and 72.2Mbps transmit PHY rate using 20MHz bandwidth

150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth

Compatible with 802.11n specification

Backward compatible with 802.11b/g device while operating in 802.11n mode

Specification

Chipset

Realtek RTL8189

WLAN

IEEE 802.11 b/g/n

Certification

FCC/CE/ TELEC

Dimension (mm)

13 mm x 13 mm x 2.35 mm

Operating Temperature

0℃ ~ 70℃

Interface

SPI/SDIO

Downloads

WG6031-00

Title Size Download
WG6031-00-DTS-R06_210826 806.84 kb Download Preview
