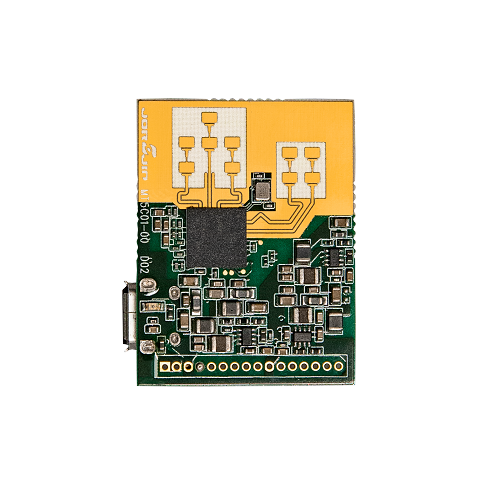

The MT5C01-00 is the presence/motion detection sensor module which integrates 60GHz mmWave technology. The module simplifies the implementation of mmWave sensors in the band of 60 to 64 GHz (target), and it includes the Arm Cortex-M4F based processor system, 2Tx 3Rx antenna and onboard regulator. This presence/motion detection sensor module targets low power and high resolution presence/motion detection in light control, indoor occupancy sensors, thermostats, appliances, video doorbell and home surveillance.

Key Features

Integrated frequency synthesizer: 60~64 GHz

Average power consumption of <2mW to 25mW+ (depending on duty cycle)

Internal USB to UART bridge for demonstration

Small Form Factor Module, Low Power and High Performance

Temperature range: -40~85° C

Specification



ARM Cortex M4F MCU @160 MHz

Built-in 3RX and 2TX Antenna

Built-in Regulator

Interface: UART、RS232、SPI、CAN、I2C

5V/1A Power input

1.27 mm pin header

Dimensions: 31.5 mm (L) x 24 mm (W) x 2.2 mm (H)
