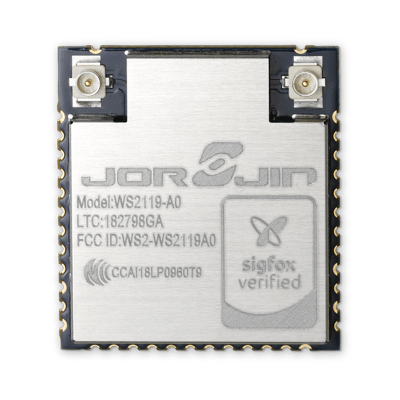

WS2119-A0
SIGFOX BLE MODULE
WS2119-A0
The WS2119-A0 module is a cost-effective, high performance, ultra-low power, sub-1GHz and Bluetooth® low energy RF device. Very low active RF and MCU current and low-power mode current consumption provide excellent battery lifetime and allow for operation on small coin cell batteries and in energy-harvesting applications.The radio frequency supports Sigfox RCZ2 and RCZ4.
Key Features
STM BlueNRG-1, S2-LP, sub-1GHz PA, 16MHz, 50MHz & 32.768KHz crystals, DC2DC, and U.FL connector on a single module
Stamp-hole 38pins package
High performance, ultra-low power Cortex-M0 32-bit Microcontroller
Programmable 160 KB Flash
24 KB RAM with retention (two 12 KB banks)
Up to +8dBm BLE RF output power, up to +27 dBm sub-1GHz RF output power
Excellent performance of receiver sensitivity. Up to -88dBm (BLE) and -130dBm (Sub-1GHz)
Low Power and Wide Supply Voltage Range: 2.0 to 3.6V
Internal DC-DC converter built-in
Specification
Region
SIGFOX RC 2/4
Frequency
902/920 MHz
Output Power
BLE Up to +8dBm / Sub1G Up to +27dBm
Chipset
STM BlueNRG-1 + S2-LP
Certification
FCC/ NCC
SIGFOX Verified
Passed
Dimension (mm)
22.0 mm x 24.0 mm x 2.8 mm
Operating Temperature
-40℃ ~ 85℃
Interface
UART *1/I2C*1 / SPI*1
Downloads
WS2119-00
| Title | Size | Download |
|---|---|---|
| WS211x_FW_Development_Guide_3.5.3 | 3.85 mb | Download Preview |
| WS2119-A0A-DTS-R02_210729 | 1.19 mb | Download Preview |
| WS2119-00_Datasheet | 1.84 mb | Download Preview |
