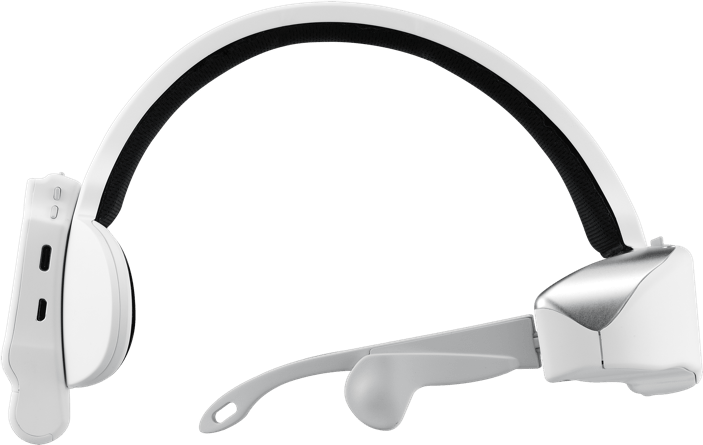

J-Reality is a high-performance binocular smart glasses product with built-in Qualcomm® Snapdragon™ 820 processor, LUMUS OE-50 Optical Engine and Stereo cameras.
J-Reality is ideally compatible with Android and it is suited for building the augmented-reality (AR) apps.
The next-generation smart glasses by Jorjin are highly integrated with I/O connectivity for external devices.
Jorjin J-Reality presents the next-generation smart wearable eyewear that delivers outstanding computing performance, true 3D image, fused powerful sensor, and comfort design that will enrich infinite AR applications for users and developers.
J-Reality is built with a powerful processor to enhance image-processing and advanced dual-camera design for high-resolution vision quality.
High Resolution Camera
True 3D Image
6-D Gesture Sensor
Stereo Camera & 12M Camera
Wireless Connection
BT / Wi-Fi / GNSS
9-axis Sensor for
AR/MR Application
J-Reality which can be modified or upgraded easily by customer’s requests is modular based design.
Jorjin can also provides modules which are used in J-Reality flexibly, such as main computing module(equipped with SD 820), or wireless connectivity module.
Processor
Quad-Core 64 bit, Up to 2.2 GHz
Storage
32GB UFS
Memory
3 GB/4GB LPDDR4 SDRAM
Platform
Android 6.0.1
0.37″ LCoS Module
See-Thru
40° Diagonal FOV
16:9 Aspect Ratio
1,280 x 720 Pixels
True Color
56″ virtual image at 2m distance
WiFi
802.11 a/b/g/n/ac
Bluetooth
BT 4.1 + HS, BLE and be backwards compatible with BT1.x, 2.x + EDR
GNSS
Frequency Band 1575.42 MHz
DC Input
5V 2A
USB Port
Micro USB 2.0 x1, USB Type C 3.0 x1
Audio Port
1x 3.5mm earphone jack; 2x Microphones; 2x Speakers
Support Six Digital microphone ports
HDMI Port
Micro HDMI x1
1x Power on / off switch button
2x Volume control buttons
2 x Brightness Buttons
Power Adapter
External AC adapter (Output 4.2V, 5A; Input 100-240VAC, 50/60Hz) for charging
Battery
Li-ion Polymer Battery 3,350 mAh / 12.06Wh/ 3.6V
2nd Battery 3,350mAh
Color CMOS 12 megapixel sensor
FOV: 82°
Color CMOS 4 megapixel sensor
FOV: 80°
9-Axis sensor
* Gyro: digital-output X-, Y-, Z-axis angular rate sensors with user
programmable full-scale range of 250, 500, 1000, and 2000/sec.
* Accelerometer: digital-output 3-Axis accelerometer with a programmable full
scale range of 2g, 4g, 8g and 16g.
* Magnetometer: 3-axis silicon monolithic Hall-effect magnetic sensor with
magnetic concentrator. (This 9-Axis sensor is indicated for AR application
usage only)
6-Axis sensor
* Gyro : ±125 / ±245 / ±500 / ±1000 / ±2000 dps full scale
* Accelerometer : ±2 / ±4 / ±8 / ±16g full scale
Gesture Sensor
6D Gesture Recognition Distance: 50~200 mm
387g / 434g (with 2nd Battery)
235mm x 168mm x 162mm
Operating Temperature
0°C ~ 40°C (32°F ~ 104°F)
Relative Humidity
10 %~ 90% R.H.
* 1GB=1 billion bytes; actual formatted capacity will be less.
* Specifications subject to change without notice.
Air Mouse
Micro USB 2.0 Cable
Micro USB Host OTG Adapter
USB QC 3.0 Adapter
Type C Cable
The 2nd Battery
MR Binocular Smart Glasses
(ODM Reference Design)
